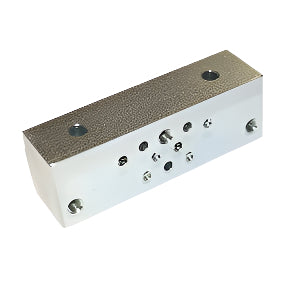

Graco 15R993 Modular-Style Large Progressive 3/8" NPT MXP Inlet Divider Valve Block Assembly with 18 Ports

$157.50
  • Brand: Graco
  • Availability: In Stock (1)

Does not ship to: CA

15R993 Graco Trabon Modular-Style Large Progressive 3/8 Inch NPT  MXP Inlet Divider Valve Block Assembly with 18 Ports    * The...

15R993 Graco Trabon Modular-Style Large Progressive 3/8 Inch NPT  MXP Inlet Divider Valve Block Assembly with 18 Ports




* The Trabon MXP Serires' greater output volume makes it easy to customize your assembly to meet larger machine requirements.



FEATURES:

  • Quick change valve sections can be removed from the base assembly without disturbing any lube lines, minimizing labor cost and maximizing your machine up-time
  • Accessories such as magnetic and electronic proximity switch cycle indicators provide positive assurance of a successful lube event
  • Alternate outlet on face of valves can be fitted with optional performance indicators, taking the guesswork out of troubleshooting
  • Built-in outlet check valves ensure accurate lube delivery, every time
  • Pulp and paper, Steel Mills, heavy and high volume industrial applications
  • Oil/Grease up to NLGI #2



TECHNICAL SPECS:

  • Product # - 15R993
  • Construction Material - Zinc Plated Carbon Steel
  • Maximum Pressure - 3,000 PSI (207/bar)
  • Max Operating Temp - 350°F (176°C)
  • Max Cycle Rate w/Cycle Pin - 60 cycles/min.
  • Max Cycle Rate w/o Cycle Pin - 200 cycles/min.
  • O-Ring Seal - 90 Durometer Fluoroelastomer
  • Old Trabon P/N - 527-300-000





PDF File Downloads of Product Data Sheets & SDS Sheets PDF DOWNLOADS:
